UHV Wobble Sticks: MCTS

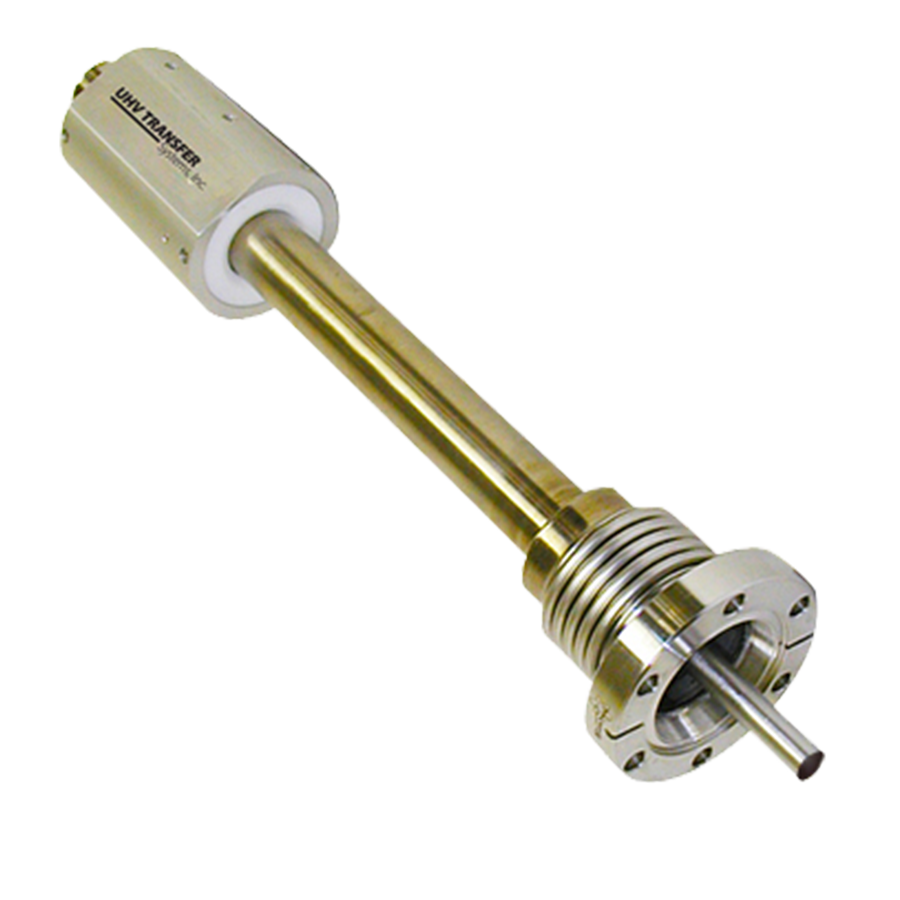

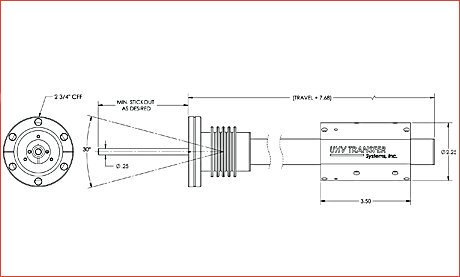

Model MCTS-LR
A single round shaft, magnetically-coupled wobble stick offering smooth manual manipulation of various end effectors providing angular, linear and/or rotary motions.
UHV Transfer Systems Wobble Sticks with Linear or Linear/Rotary and Angular Motions
The Model MCTS, Magnetically-Coupled Wobble Sticks are an economical way to perform simple linear/rotary/angular motion within a vacuum system. Robust and reliable, the MCTS reduces the risk of leaks by eliminating the use of edge welded bellows.
Rare earth magnets provide a strong magnetic coupling. The unit is completely UHV-compatible and it is bakeable to 250°C with the external magnet carriage assembly removed.
Standard Wobble Sticks are available with customer specified push-pull linear travel and an angular tilt of ±15 degrees. They can be used to transfer and manipulate sample pucks, stubs, flag-style plates or custom end-effectors.
The secondary shaft of the Model MCTS-LR-L adds versatility allowing the open and close of jaws and other pincher devices. Contact us to discuss custom requirements.
| MODEL | MCTS |
|---|---|
| Material | |
| Flange, outer tube and square shaft | 304ss |
| Actuator Housing | Anodized Aluminum |
| Seals | Hydroformed ss Bellows |
| Rare Earth Magnets | SmCo |
| Performance | |
| Vacuum Range | 1×10-11 Torr |
| Linear Decoupling | 8 lbs (35.58N) |
| Angular Movement | ±15 degrees |
| Mounting | 2.75″ CF |
| Weight | Approx. 2 lbs |
Specifications subject to change without notice. |
|
